Geothermal energy, derived from the Earth’s heat, offers a renewable and sustainable alternative to traditional fossil fuels. Geothermal wells serve as the backbone of this energy source, enabling the extraction of heat from beneath the Earth’s surface.
One crucial aspect of tapping into geothermal energy is drilling wells to access the hot subsurface reservoirs. However, with geothermal energy solutions by CNPS, you can confidently navigate the complexities of well drilling, maximizing reservoir access, and optimizing energy production from geothermal sources.
Leveraging its expertise in oilfield and gas services and equipment, CNPS also offers cutting-edge drilling equipment, advanced drilling techniques, and specialized expertise tailored specifically for geothermal applications.
Top of Form
Give us a call to discuss your requirements for high-class renewable and sustainable energy solutions for your project. Keep reading to learn all you need to know about geothermal wells.
What are Geothermal Wells?

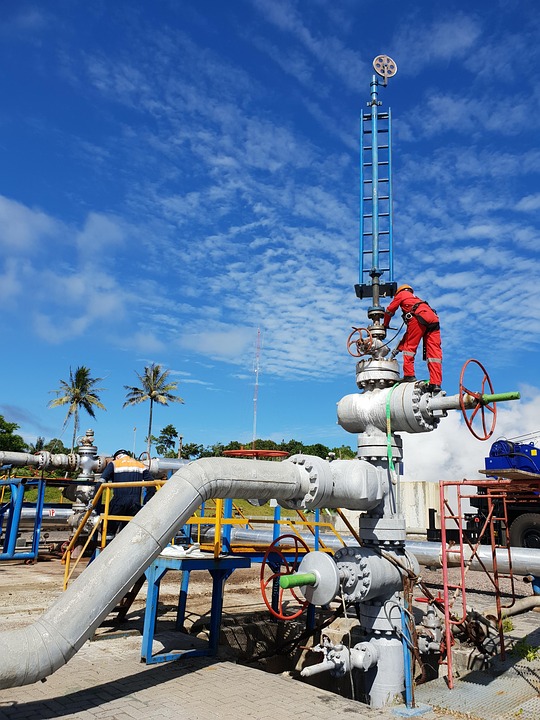

Geothermal wells are boreholes drilled deep into the Earth’s crust to access subsurface reservoirs of hot water and steam. These wells are equipped with piping systems that transport the geothermal fluids to the surface, where they are utilized for electricity generation, heating, and various industrial processes. Geothermal wells come in different types, including production wells, injection wells, and monitoring wells, each serving a specific purpose in the geothermal energy production cycle.
Why Geothermal Wells?
Renewable Energy Source
Geothermal energy is renewable and virtually inexhaustible, as it relies on the Earth’s internal heat, which is continuously replenished through natural processes. Unlike fossil fuels, geothermal energy does not produce greenhouse gas emissions or contribute to air pollution, making it a cleaner alternative for power generation and heating.
Baseload Power Generation
Geothermal wells enable the production of baseload power, meaning they can provide a constant and reliable source of electricity regardless of external factors like weather or time of day. This stability is crucial for ensuring grid reliability and reducing dependency on intermittent renewable energy sources like wind and solar.
Low Environmental Impact
Compared to traditional power plants fueled by coal, oil, or natural gas, geothermal energy production has minimal environmental impact. Geothermal wells occupy relatively small surface areas and produce no air pollutants or greenhouse gas emissions during operation. Additionally, advancements in drilling technology have led to reduced surface disturbance and enhanced efficiency in geothermal well construction.
Common Types Of Geothermal Wells
Production Wells
Production wells are the primary conduits for extracting geothermal fluids, such as hot water or steam, from underground reservoirs. These wells are drilled deep into the Earth’s crust to reach the geothermal reservoirs where heat is stored.
Depending on the type of reservoir—liquid-dominated or vapor-dominated—production wells may encounter hot water or steam. The extracted fluids are then brought to the surface for energy conversion or direct use.
Injection Wells
Injection wells are utilized in geothermal systems to reinject cooled geothermal fluids back into the reservoir. This practice helps maintain reservoir pressure and sustains long-term productivity by replenishing the heat source.
Injection wells are typically located near production wells and are designed to safely reintroduce the cooled fluids into the reservoir without impacting surrounding geological formations.
Observation Wells
Observation wells, also known as monitoring wells or slim holes, are used to gather data about underground geological conditions and reservoir characteristics. These wells are equipped with sensors, probes, and monitoring equipment to measure parameters such as temperature, pressure, and fluid composition within the geothermal reservoir. Observation wells provide valuable insights into reservoir behavior, helping optimize production strategies and reservoir management practices.
Geothermal Heat Pump Wells
Geothermal heat pump wells, also known as ground source heat exchange wells, are shallow wells used in geothermal heating and cooling systems for buildings. These wells circulate a heat transfer fluid, such as water or antifreeze, through a closed-loop piping system buried underground.
Hybrid Wells
Hybrid wells combine geothermal energy extraction with other resource utilization, such as oil and gas production or mineral extraction. These wells leverage existing drilling infrastructure and geological knowledge to extract multiple resources simultaneously, optimizing resource utilization and economic returns.
Hybrid wells require careful engineering and planning to ensure operational efficiency and minimize environmental impact across multiple resource extraction activities.
How Geothermal Wells Work
Exploration and Site Selection
The first step in developing a geothermal project involves geological surveys and exploration to identify suitable sites with high heat flow and permeable rock formations. Once a promising site is identified, drilling operations commence to access the geothermal reservoirs deep underground.
Drilling the Well
The drilling of a geothermal well begins, typically several thousand feet deep. These wells penetrate the Earth’s crust, where temperatures rise significantly with depth due to geothermal gradients. The drilling process involves specialized equipment and techniques to navigate through various geological formations while maintaining the integrity of the wellbore.
Tapping into Reservoirs
Geothermal wells access natural reservoirs of hot water or steam trapped within the Earth’s crust. These reservoirs exist in porous and permeable rock formations, such as fractured granite or sedimentary basins, where water circulates and becomes heated by the surrounding rock. Wells may encounter either liquid-dominated reservoirs, where hot water is prevalent, or vapor-dominated reservoirs, where steam is the dominant phase.
Fluid Circulation
Once the well reaches the geothermal reservoir, fluids such as water or brine are pumped down into the wellbore. As these fluids circulate through the reservoir, they absorb heat from the surrounding rock, reaching temperatures exceeding 300 degrees Fahrenheit or higher in some cases. The heated fluid then returns to the surface through production wells, where its thermal energy is extracted for various applications.
Energy Conversion
At the surface, the heated fluid passes through a heat exchanger, where its thermal energy is transferred to a secondary fluid, typically water or organic fluids with lower boiling points. This secondary fluid vaporizes upon contact with the high-temperature geothermal fluid, creating pressurized steam or hot water.
Power Generation
The pressurized steam or hot water is then directed to a turbine-generator system, where it drives turbines connected to electricity generators. The rotational energy of the turbines is converted into electrical power, which can be distributed to the grid for use in homes, businesses, and industries. Alternatively, the steam or hot water can be utilized directly for heating applications in district heating systems or industrial processes.
Reinjection and Sustainability
To maintain the long-term sustainability of geothermal reservoirs, reinjection wells may be utilized to return the cooled geothermal fluids into the reservoir, replenishing the heat source and sustaining reservoir pressure. This practice helps to mitigate the depletion of heat and fluid resources, ensuring the continued viability of geothermal energy production.
Effective Methods For Drilling Geothermal Wells
Direct Rotary Drilling
Direct rotary drilling involves the use of a rotary drill bit attached to the end of a string of drill pipe. As the drill bit rotates, it crushes rock formations, creating boreholes for the extraction of geothermal energy.
One key advantage of direct rotary drilling is its versatility, allowing it to be adapted to various geological formations, including sedimentary, igneous, and metamorphic rocks. Recent advancements in drill bit design, such as the use of diamond-enhanced materials and improved cutting structures, have enhanced drilling efficiency and longevity.
Additionally, advancements in drilling fluid technology, such as the development of environmentally friendly and biodegradable additives, contribute to minimizing environmental impact.
Directional Drilling
Directional drilling techniques enable engineers to access geothermal reservoirs that are inaccessible with conventional vertical wells. By steering the drill bit at specific angles, directional drilling maximizes reservoir contact, leading to increased energy extraction rates and improved overall efficiency.
The integration of advanced measurement and logging systems allows for precise wellbore positioning and real-time data feedback, optimizing drilling trajectories and reducing the risk of encountering geological hazards.
Furthermore, the use of rotary steerable systems and electromagnetic telemetry technologies enhances drilling accuracy and efficiency in complex geological settings, such as fractured reservoirs and geologically faulted zones.
Geothermal Drilling Fluids
Geothermal drilling fluids play a critical role in lubricating the drill bit, carrying rock cuttings to the surface, and maintaining wellbore stability. In high-temperature geothermal environments, where conventional water-based drilling fluids may degrade or lose effectiveness, synthetic oil-based muds and non-aqueous drilling fluids offer superior thermal stability and lubricity.
Recent advancements in drilling fluid formulations focus on enhancing thermal conductivity, rheological properties, and filtration control to optimize drilling performance and mitigate wellbore challenges.
Moreover, the development of environmentally friendly drilling fluid additives, such as bio-based lubricants and biodegradable polymers, aligns with sustainability initiatives in the geothermal industry.
Managed Pressure Drilling (MPD)
Managed Pressure Drilling (MPD) techniques provide precise control over wellbore pressure, minimizing drilling risks and improving operational safety in geothermal wells.
By maintaining constant bottom hole pressure (CBHP) within a narrow margin, MPD mitigates the risk of fluid influx, kicks, and wellbore instability, particularly in narrow pore pressure and fracture gradient windows.
Advanced MPD systems, equipped with automated pressure control devices and real-time monitoring sensors, enable proactive wellbore management and rapid response to dynamic drilling conditions. The integration of predictive modeling and data analytics further enhances decision-making processes, optimizing drilling performance and reducing non-productive time.
Underbalanced Drilling (UBD)
Underbalanced drilling (UBD) methodologies offer an alternative approach to conventional drilling techniques, particularly in geothermal formations prone to drilling fluid invasion and formation damage.
By maintaining wellbore pressure lower than formation pressure, UBD minimizes fluid invasion into the reservoir, reduces drilling-induced formation damage, and enhances reservoir productivity. The use of gas-based drilling fluids, such as nitrogen or air, creates underbalanced conditions while providing efficient cuttings transport and wellbore stability.
Advanced UBD techniques, such as foam drilling and mist drilling, further improve drilling performance in challenging formations, such as highly fractured reservoirs and unstable shale formations.
Drilling Automation and Robotics
Automation and robotics are transforming geothermal drilling operations by enhancing efficiency, safety, and reliability. Automated drilling systems equipped with advanced sensors, actuators, and control algorithms enable autonomous operation and real-time monitoring of drilling parameters.
Robotics platforms, such as robotic drilling rigs and remotely operated vehicles (ROVs), reduce human intervention and exposure to hazardous environments, improving overall operational safety. Furthermore, the integration of artificial intelligence (AI) and machine learning algorithms enables predictive maintenance, anomaly detection, and optimization of drilling processes, maximizing drilling efficiency and minimizing downtime.
Enhanced Drilling Technologies
Enhanced drilling technologies, such as hydraulic fracturing and abrasive jetting, unlock the full potential of geothermal reservoirs by enhancing wellbore connectivity and heat transfer efficiency. Hydraulic fracturing techniques, including hydro-jetting and water jet drilling, create artificial fractures in low-permeability formations, increasing reservoir permeability and fluid flow rates.
Advanced drilling tools, such as polycrystalline diamond compact (PDC) bits and diamond-enhanced drilling systems, offer superior durability and penetration rates in hard rock formations, reducing drilling time and costs.
Additionally, the integration of geophysical imaging techniques, such as seismic while drilling (SWD) and electromagnetic logging, provides valuable insights into subsurface geology and reservoir characteristics, optimizing well placement and reservoir management strategies.
Explore The Transformative Potential Of Geothermal Energy With CNPS
While traditionally known for its expertise in oilfield and gas operations, CNPS has ventured into innovative energy solutions, including geothermal technology.
Since many of the drilling, well completion, and reservoir management techniques used in the oil and gas industry apply to geothermal projects, CNPS’s innovative approach involves retrofitting and optimizing these technologies to suit the unique characteristics of geothermal reservoirs, thereby streamlining project development and reducing costs.
In addition to adapting existing technologies, CNPS invests in the development of customized equipment and solutions specifically designed for geothermal applications. This includes specialized drilling rigs, downhole tools, and surface equipment tailored to the unique challenges of geothermal exploration and production.
Reach out to learn more about our range of high-quality equipment engineered to ensure greater efficiency, reliability, and safety in geothermal operations, ultimately optimizing project performance.
