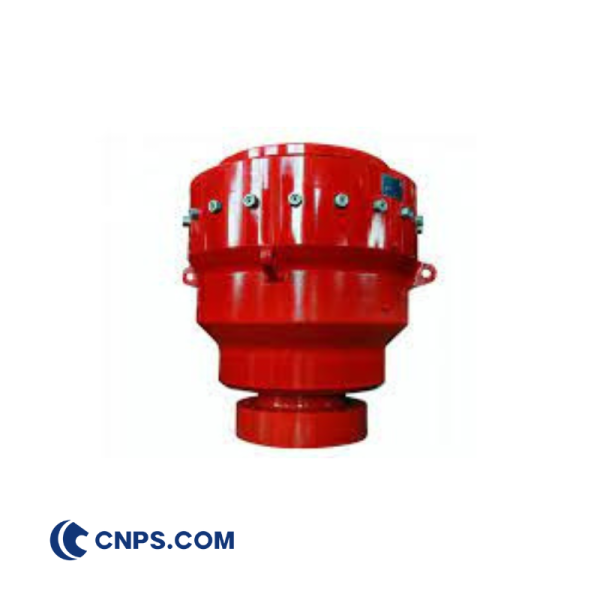

Our API 16A hydril annular BOP can be used in work over and drilling operations equipped with hydril control systems. The BOPs are designed and manufactured in full conformity to the API 16A standard. The annular BOP mainly consists of a body, a header, a rubber core, and a piston. The inner rubber core is interchangeable. While the annular BOP can be used independently, it normally works with a single or a double BOP.It can seal the drilling tool or well bore efficiently, preventing oil well blow outs. Its anti H2S performance conforms to the NACE MR 0175 standard.
1.Double ram BOP seals annular space between tubing and casing or wellbore.
2.Double ram BOP suspends and stabilizes string.
3.Double ram BOP with side outlets could be used for choke and blowout.
4.Double ram BOP can be used in operation under pressure.
Model 2FZ18-21 2FZ18-35
Rated working pressure(psi) 3000 5000
Nominal diameter(in) 7 1/16 7 3/8
Strength pressure test(psi) 6000 7500
Oil cylinder working pressure(psi) 1200-1500 1200-1500
Piston stroke(mm) 100 100
Metal temperature class -29~121℃ -29~121℃
Nonmetal temp. class -18~121℃ -18~121℃
Oil cylinder closed chamber volume 2 x 1.75L 2 x 1.75L
Oil cylinder open chamber volume 2 x 1.50L 2 x 1.50L
Ram closed interval(s) <15 <15
Ram specification 2 3/8” 2 7/8” 3 1/2” 4 1/2” blind ram 2 3/8” 2 7/8” 3 1/2” 4 1/2” blind ram
Bolt quantity and diameter 12-M30 x 3 x 210 12-M36 x 3 x 230
Ring gasket R45 R46
Dimension(mm) 1350 x 380 x 638 1350 x 395 x 656
Weight (lb) 1717 1780
Certifications DNV PR2
Choke Valve DNV PR2
Gate Valve DNV PR2
Tubing-head Spool API 6A
