Maximizing Reservoir Potential: Innovative Well Completion Strategies

Maximizing the potential of a reservoir involves implementing effective well-completion strategies. These strategies focus on enhancing contact with hydrocarbon-bearing formations and optimizing flow rates. This post will cover several innovative well-completion techniques that can significantly improve reservoir performance.

Hydraulic Fracturing

Hydraulic fracturing is a widely used method that involves injecting high-pressure fluid into the well to create fractures in the rock formation. This technique increases the surface area in contact with the hydrocarbon-bearing formation, allowing for better flow rates.

The fractures provide pathways for oil and gas to move more freely to the wellbore, enhancing production. Modern advancements in hydraulic fracturing include the use of more environmentally friendly fluids and better monitoring technologies to optimize fracture placement and efficiency.

Multilateral Wells

Multilateral well technology involves drilling multiple lateral branches from a single main wellbore. This approach allows for increased reservoir contact and improved hydrocarbon recovery.

By accessing different sections of the reservoir, multilateral wells can enhance production rates and reduce the need for additional surface infrastructure. The implementation of multilateral wells can also minimize environmental impact and reduce drilling costs by maximizing the output from a single wellbore.

Horizontal Drilling

Horizontal drilling is a technique that involves drilling the wellbore horizontally within the reservoir formation. This method increases the well’s contact with the hydrocarbon-bearing layers compared to traditional vertical wells.

Horizontal drilling is particularly effective in thin reservoirs, where vertical wells would not be able to access the full extent of the formation. Advances in drilling technology, such as steerable drilling systems, have made horizontal drilling more accurate and efficient.

Enhanced Oil Recovery (EOR)

Enhanced Oil Recovery techniques aim to increase the amount of oil that can be extracted from a reservoir. EOR methods include thermal recovery, gas injection, and chemical flooding. Each method has its own advantages and is selected based on the specific characteristics of the reservoir.

For example, thermal recovery involves injecting steam to reduce the viscosity of heavy oil, making it easier to extract. Gas injection can help maintain reservoir pressure and improve oil displacement, while chemical flooding uses surfactants and polymers to increase oil mobility.

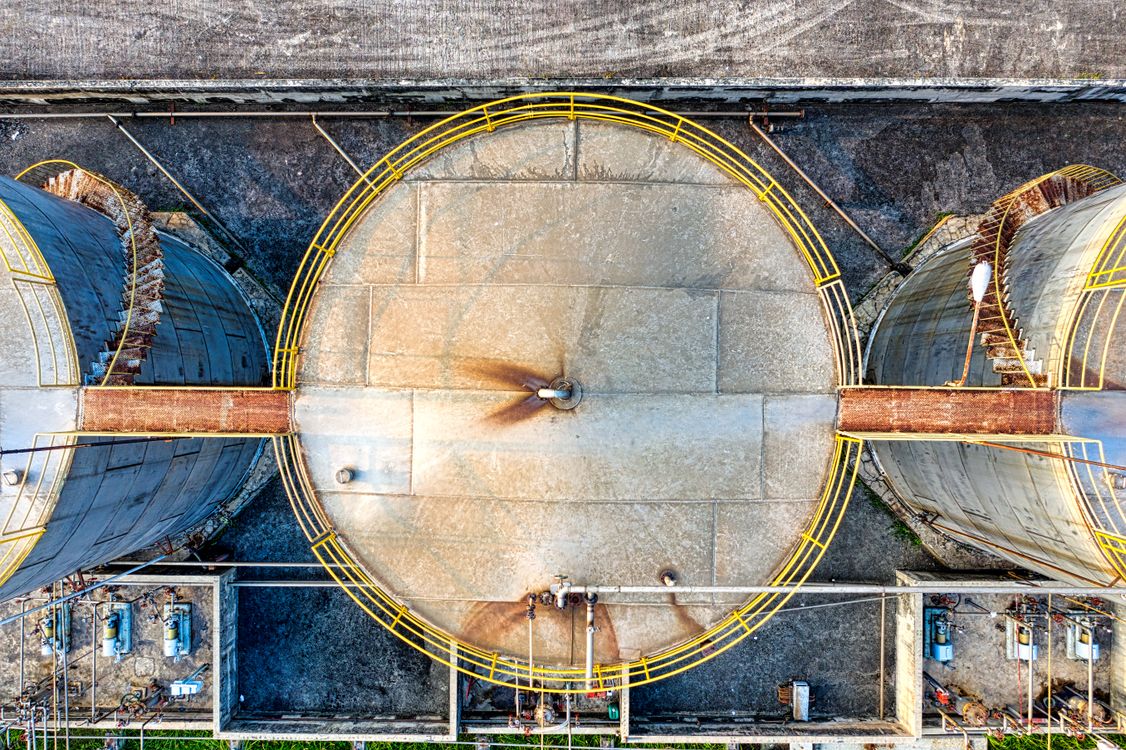

barrels for liquid substances at industrial factory

Intelligent Well Completions

Intelligent well completions integrate advanced sensors and control systems within the wellbore to monitor and manage production in real-time.

These systems provide valuable data on reservoir conditions and well performance, allowing operators to make informed decisions about production strategies. Intelligent completions can optimize flow rates, reduce the need for costly interventions, and extend the life of the well. Technologies such as downhole sensors, inflow control devices, and fiber optic cables play a crucial role in enabling intelligent well completions.

Picture of refracking well completition

Managed Pressure Drilling (MPD)

Managed Pressure Drilling is a drilling technique that precisely controls the pressure profile within the wellbore. MPD allows for safer and more efficient drilling in challenging conditions, such as high-pressure, high-temperature reservoirs.

By managing the pressure, operators can minimize the risk of blowouts, reduce non-productive time, and improve the accuracy of well placement. MPD is especially beneficial in reservoirs with narrow pressure windows, where traditional drilling methods may not be feasible.

Underbalanced Drilling (UBD)

Underbalanced Drilling is a technique where the pressure in the wellbore is kept lower than the formation pressure. This approach prevents formation damage and enhances the flow of hydrocarbons into the wellbore. UBD can improve drilling efficiency and reduce costs by minimizing fluid losses and avoiding the need for heavy mud. The technique is particularly useful in reservoirs with low permeability, where maintaining reservoir integrity is essential for maximizing production.

Expandable Tubular Technology

Expandable tubular technology involves the use of expandable casing and liners to improve well integrity and performance. This technology allows for the creation of larger wellbore diameters, which can enhance production and reduce drilling costs. Expandable tubulars are particularly useful in wells with challenging formations, where conventional casing methods may not be effective. The ability to expand the casing in situ also reduces the need for multiple casing strings, simplifying the well construction process.

Acidizing

Acidizing is a well-stimulation technique that involves pumping acid into the well to dissolve rock formations and improve permeability. This process enhances the flow of hydrocarbons by creating new pathways and enlarging existing fractures. Acidizing is particularly effective in carbonate reservoirs, where acid reacts with the rock to create significant improvements in permeability. The technique can be used in both new and existing wells to boost production and extend the life of the reservoir.

people in boat near water dam

Sand Control Methods

Sand production is a common issue in many reservoirs, leading to equipment damage, reduced production rates, and reservoir potential. Sand control methods, such as gravel packing and screens, are used to prevent sand from entering the wellbore while maintaining optimal flow rates. Gravel packing involves placing gravel around a screen to filter out sand, while screens provide a physical barrier to sand entry. Advances in sand control technologies, such as expandable screens and resin-coated gravel, have improved the effectiveness and reliability of these methods.

Water Shut-Off Techniques

Excessive water production can significantly impact the profitability of a well. Water shut-off techniques are used to reduce water production and improve hydrocarbon recovery. These methods include mechanical barriers, such as packers and plugs, as well as chemical treatments that block water flow. Water shut-off techniques are particularly important in mature reservoirs, where water production can increase over time, reducing the efficiency of oil and gas extraction.

Completions in Unconventional Reservoirs

Unconventional reservoirs, such as shale and tight gas formations, require specialized completion techniques to maximize production. Hydraulic fracturing and horizontal drilling are commonly used in these reservoirs to improve contact with the hydrocarbon-bearing formation.

Additionally, advances in microseismic monitoring and geomechanical modeling have enhanced the ability to design effective completion strategies for unconventional reservoirs. These techniques help unlock the potential of resources that would otherwise be uneconomical to produce.

Geomechanical Modeling

Geomechanical modeling involves simulating the mechanical behavior of the reservoir rock to optimize well completion strategies. By understanding how the rock responds to drilling and production activities, operators can design completions that minimize formation damage and enhance hydrocarbon recovery.

Geomechanical models can also help predict the behavior of fractures and optimize hydraulic fracturing designs. The integration of geomechanical data with real-time monitoring systems allows for continuous optimization of well completions.

Inflow Control Devices (ICDs)

Inflow Control Devices are used to manage the flow of fluids into the wellbore, balancing production and preventing water or gas breakthrough. ICDs can be installed at different intervals along the wellbore to control the inflow from various sections of the reservoir. This technology helps optimize production rates and improve reservoir management. Advances in ICD technology, such as autonomous inflow control devices, have further enhanced the ability to manage complex reservoirs and maximize recovery.

Real-Time Data Analytics

Real-time data analytics involves the use of advanced algorithms and machine learning techniques to analyze data from the wellbore and reservoir in real-time. This approach provides valuable insights into good performance and reservoir conditions, allowing operators to make data-driven decisions about well completion and production strategies.

Real-time data analytics can help identify issues early, optimize production rates, and improve overall reservoir management. The integration of real-time data with intelligent completion systems further enhances the ability to maximize reservoir potential.

Man screen market data

Autonomous Systems

Autonomous systems in well completions involve the use of automated technologies to perform tasks without human intervention. These systems can optimize well performance, reduce operational costs, and enhance safety. Examples of autonomous systems include automated drilling rigs, robotic well intervention tools, and intelligent completion systems that adjust production parameters based on real-time data. The use of autonomous systems in well completions represents a significant advancement in the ability to maximize reservoir potential and improve operational efficiency.

Advanced Materials

The use of advanced materials in well completions can enhance the performance and durability of completion equipment. Examples include high-strength alloys, corrosion-resistant materials, and advanced composites. These materials can withstand harsh downhole conditions, reduce maintenance costs, and extend the life of the well. The development of new materials continues to drive innovation in well-completion technologies, enabling more effective and efficient extraction of hydrocarbons.

Production Logging

Production logging involves the use of downhole tools to measure the flow of fluids within the wellbore. This technique provides valuable data on reservoir conditions and well performance, helping operators optimize completion strategies and improve production rates.

Production logging tools can measure parameters such as flow rate, pressure, and temperature at different intervals along the wellbore. The data collected from production logging can be used to identify production issues, optimize wellbore design, and enhance overall reservoir management.

Microbial Enhanced Oil Recovery (MEOR)

Microbial Enhanced Oil Recovery is an innovative technique that involves the use of microorganisms to improve oil recovery. These microorganisms can produce gases, acids, and other substances that help mobilize trapped oil and enhance its flow to the wellbore. MEOR is particularly effective in mature reservoirs, where traditional EOR methods may not be feasible. The use of MEOR can extend the life of the reservoir, increase production rates, and reduce the environmental impact of oil extraction.

Innovative well-completion strategies are essential for maximizing reservoir potential and optimizing hydrocarbon production. By implementing advanced techniques such as hydraulic fracturing, multilateral wells, and intelligent completions, you can significantly enhance reservoir performance and improve overall production rates. Stay ahead in the industry by adopting these cutting-edge methods.
