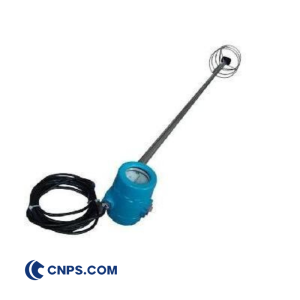

Mud logging sensor named drilling fluid temperature sensor

Mud logging sensor named drilling fluid temperature sensor The CNPS drilling fluid temperature sensor is used to measure the temperature of drilling fluid.


The CNPS type drilling fluid temperature sensor is composed of a temperature detector and a transmitter. When the drilling fluid temperature changes, the resistance of the temperature sensor in the temperature sensor detector changes correspondingly, and the change is linear with the temperature change. The transmitter converts the resistance change to 4-20 mA standard DC current signal.



Technical date sheet measuring temperature 0~100 ℃

Rated working voltage 5~30VDC

Output current 4 ~ 20mA

DC Measurement accuracy +- 1.0%FS 5 ~ 95%RH

Relative humidity 100Hz



The sensor is equipped with an anti-collision metal housing, mechanical and oil-resistant seals are used in the connecting part, and thick film platinum resistance is used in the temperature sensing part. It has the advantages of corrosion resistance, good sealing, good linearity and stable performance. It is an important sensor in oil and gas exploration and can be used in various harsh environments such as oilfield field.



The mud temperature sensor is very convenient to install. It is only necessary to immerse the sensor temperature sensor in the drilling fluid to be measured completely, then fix it with a bracket and connect it with a cable.



All sensors either are EX type or are intrinsically safe. Zone barriers are installed in the Unit. Using well-known brand products at home and abroad, the sensors of mud logging unit have the advantage of technical and performance indicators. At the same time, the service life is long.



CNPS can ship the goods to you by Express, Air, or sea.



1.Why do you choose our company?

We are trading company, founded a perfect oil and gas equipment product supply chain. We have worked in the oil industry for about 10 years(follow ISO9001 standard).We will checked our mill every months to make sure their quality. The after-service are charged by ourselves.So we can reply any problem within 24 hours.


2. How can you guanranty your quality?

Every time we will inspect our factories first. This inspect will include the persons, the present products, their scale etc. If everything is ok, we will start to cooperate. During cooperation, we will go to the factories to test the products to guanranty the products has good quality. If it doesn’t meet our requirement, the goods will be refused.


3. Do you have price advantage?

For us, the quality is our first consideration. And the second consideration is the price. We couldn’t say we have the lower price, because of quality issue. We need to say we have the best price.


4. How long do you do the export business?

For our sales persons, they have 8-10years experience to do the international business. They understand each step for the export and do good service for each of our clients.

Weight 15 kg
