Drilling, Casing, Tubing: The Three Phases Of A Wellbore

As the global demand for energy surges, the imperative to extract hydrocarbons safely, sustainably, and efficiently becomes more pronounced. From the initial spud of the drill to the installation of production tubing, the process demands precision, expertise, and technological finesse.

The journey of extracting oil and gas from beneath the Earth’s surface is a complex yet meticulously orchestrated process. It involves traversing three critical phases: drilling, casing, and tubing.

Experts at CNPS highlight some intricacies of the three distinct phases, unraveling the complexities that define the evolution of a wellbore. Explore how each phase plays a pivotal role in the construction, stability, and efficiency of a wellbore, contributing to the success of hydrocarbon exploration and production.

Partner with CNPS to leverage advanced technologies for enhanced safety and efficiency in oil and gas operations.

Drilling: Unveiling the Subsurface Layers

Drilling, the inaugural phase, sets the foundation for the entire wellbore. The dynamic process involves penetrating the Earth’s crust to reach the reservoir harboring precious oil or gas. It encompasses various techniques and technologies designed to navigate the complexities beneath the Earth’s surface.

Drilling Techniques

Rotary Drilling: In rotary drilling, a drill bit attached to a rotating drill string cuts through the rock formations. Circulating drilling fluid, usually mud, is pumped down the drill string and back up the wellbore, carrying cuttings to the surface.

Directional Drilling: To access reservoirs located at angles or depths beyond vertical drilling capabilities, directional drilling techniques are employed. This involves manipulating the wellbore path using specialized equipment to navigate subsurface formations strategically.

Horizontal Drilling: Horizontal drilling involves deviating from the vertical path to drill horizontally within a reservoir. This technique maximizes contact with the hydrocarbon-bearing formations, enhancing production efficiency.

Challenges in Drilling

Formation Instabilities: Unstable formations pose challenges during drilling, leading to issues such as wellbore collapse, stuck pipe, or lost circulation. Mitigating these challenges requires real-time monitoring and adaptive drilling practices.

Pressure & Temperature Variations: As drilling progresses into deeper layers, encountering varying pressure and temperature conditions becomes inevitable. Managing these variations is crucial to prevent equipment failures and maintain wellbore integrity.

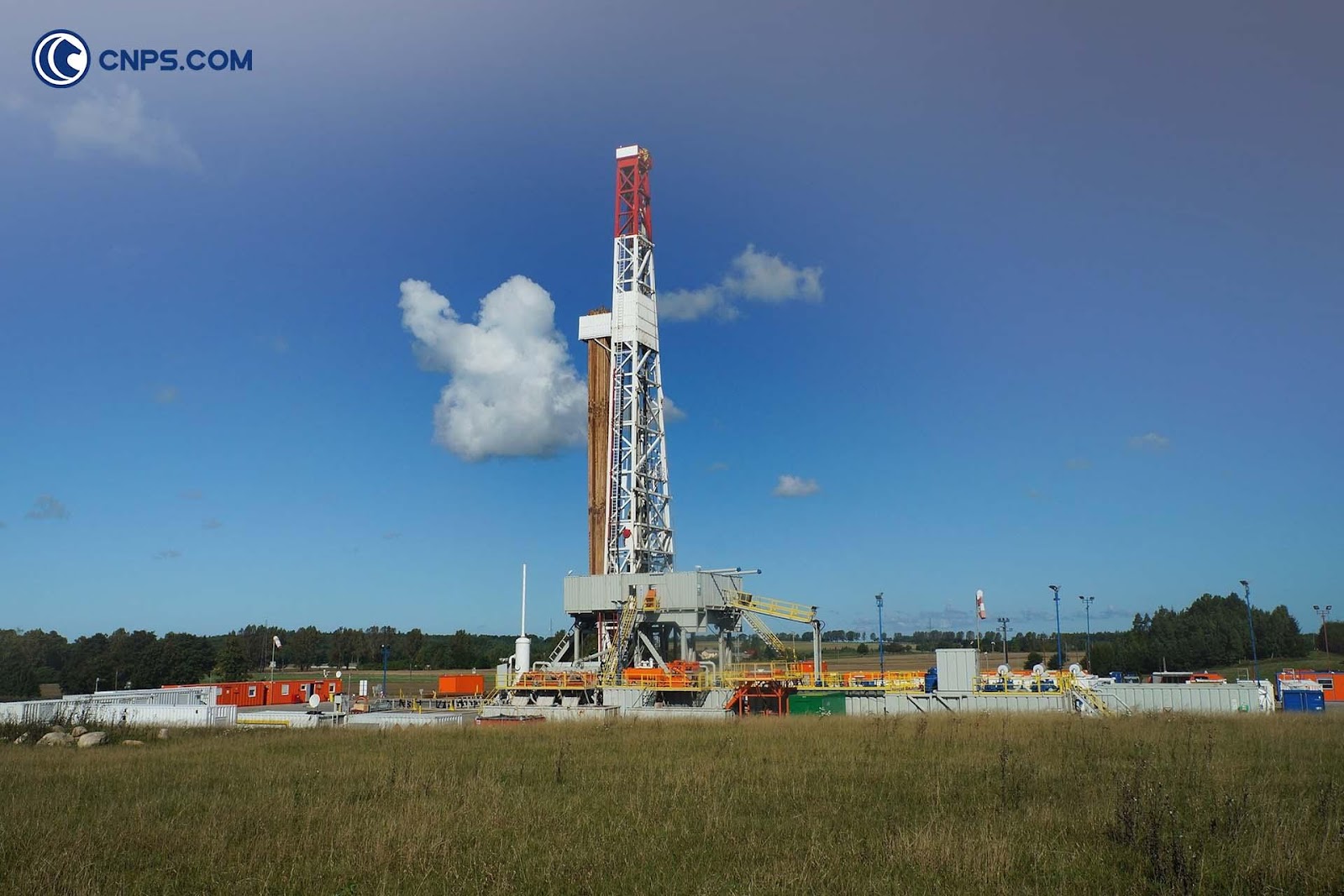

oilfield drilling equipment

Key Components & Processes

The Drill Bit & Rig Ensemble

As the drill bit descends into the Earth, it encounters various geological formations, each presenting unique challenges. The rig, comprising a derrick and associated machinery, provides the necessary power and control for the drilling operation.

Several drilling rig types cater to different depths and formations. From conventional rotary rigs to more advanced directional and horizontal drilling rigs, the choice depends on geological considerations and project objectives.

The drilling team must navigate through layers of rock, shale, and potentially hydrocarbon-rich reservoirs, adapting their techniques to the ever-changing subsurface environment.

Mud Circulation System

Drilling fluid, commonly known as mud, circulates down the drill pipe and ascends through the annulus, serving multifaceted purposes—cooling the bit, carrying cuttings to the surface, and providing stability to the wellbore walls. The choice of drill bit depends on the hardness of the formations encountered.

Formation Evaluation Tools

As drilling progresses, the geologist closely monitors the cuttings and geological data to assess reservoir potential. Real-time data, including resistivity and gamma-ray measurements, helps determine the presence of hydrocarbons, guiding decisions on well trajectory and future production strategies.

Casing Installation for Stability

While drilling, steel casing is concurrently inserted into the wellbore to prevent its collapse. This casing not only provides structural integrity but also acts as a barrier, isolating different geological formations and facilitating the control of pressure.

Well Control

Ensuring well control is paramount during drilling. Blowout preventers (BOPs) act as a failsafe, preventing uncontrolled releases of oil or gas. Rigorous well control measures, including mud weight adjustments and pressure monitoring, mitigate the risk of formation fluids surging into the wellbore.

Casing: Fortifying the Wellbore Structure

Casing Strings

Once drilling has penetrated the target reservoirs, the wellbore is fortified through the casing phase. Casing involves the installation of steel pipes, known as casing strings, into the wellbore to provide structural support, prevent well collapse, and isolate different geological formations.

The casing strings serve as a protective barrier against external pressures and ensure the stability of the wellbore, resulting in improved operational safety and integrity. Various casing strings, each with specific diameters and strengths, are sequentially inserted into the well.

Surface Casing: The first casing string, known as surface casing, is installed to secure the upper section of the wellbore. It protects freshwater aquifers from contamination and provides stability to the well during subsequent drilling operations.

Intermediate Casing: Intermediate casing is set deeper into the wellbore, typically to isolate and stabilize intermediate formations. It acts as a barrier against fluid migration and helps maintain wellbore integrity.

Production Casing: The final casing string, production casing, is installed to the total depth of the well. It provides structural support, isolates the production zone, and serves as a conduit for hydrocarbons to flow to the surface.

Challenges in Casing

Cement Integrity: Achieving a proper cement bond between the casing and the formation is crucial for zonal isolation. Challenges such as inadequate cement coverage or poor bond quality can compromise well integrity.

Casing Wear & Corrosion: Casing materials are exposed to harsh downhole conditions, including abrasive formations and corrosive fluids. Protecting casing integrity against wear and corrosion is essential for long-term well performance.

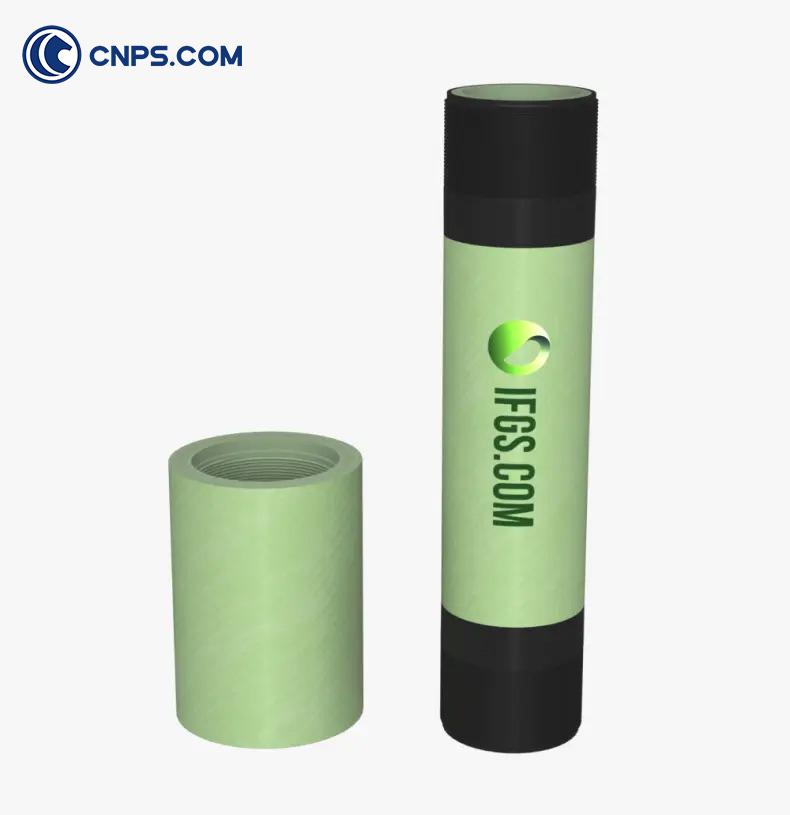

GRE casing

Key Components & Processes


Cementing is a critical step during casing installation. Cement slurry is pumped into the annular space between the casing and the wellbore wall. This process ensures zonal isolation, secures the casing in place, and prevents fluid migration between different geological formations. The cement sheath acts as a robust barrier, enhancing well integrity.

Centralizers & Hangers

To maintain a uniform cement sheath, centralizers are placed on the casing to keep it centered within the wellbore. Hangers, essential components that support the casing, are set at predetermined depths to anchor the casing in place. The combination of centralization and hangers contributes to a stable and well-supported wellbore structure.

Pressure Testing Assurance

Rigorous pressure testing follows casing installation and cementing, affirming the effectiveness of well barriers. This step verifies that the casing and cement have successfully sealed the wellbore, mitigating the risk of undesirable fluid migration.

Regulatory Compliance

Casing installation must adhere to stringent regulatory standards. Give us a call for personalized advice regarding well construction and casing design that meet industry regulations and environmental requirements. Rigorous testing and inspections ensure the integrity of the casing, minimizing the risk of leaks and environmental contamination.

Tubing: Facilitating Hydrocarbon Flow to the Surface

With the wellbore structurally fortified through casing, the tubing phase focuses on optimizing the flow of hydrocarbons from the reservoir to the surface. Tubing, a smaller-diameter pipe inserted into the well, serves as a conduit for oil and gas, facilitating production and providing a pathway for efficient flow and downhole tools during interventions.

Challenges in Tubing

Scaling & Deposition: The production tubing is susceptible to scaling and deposition of minerals or hydrocarbons. This can impede the flow of hydrocarbons and necessitate interventions such as acidizing or mechanical cleaning.

Tubing Wear & Erosion: Tubing is subject to wear and erosion, especially in high-velocity production environments. Protective measures, such as coatings or materials with high erosion resistance, are employed to mitigate these challenges.

Key Components & Processes

Completion & Perforation

Before tubing installation, the well undergoes completion—a process that prepares it for production. Perforating the casing allows for targeted communication with the reservoir. Perforation guns create holes through the casing and cement sheath, enabling hydrocarbons to flow into the wellbore.

Tubing Installation for Conduit

Tubing is inserted inside the production casing, creating a conduit for the flow of hydrocarbons. It serves as the pathway for extracted resources to journey from the reservoir to the surface production facilities.

Production Packers

Positioned in the annular space between tubing and casing, production packers create a seal, isolating the producing zone. These devices play a crucial role in controlling fluid flow and maintaining the structural integrity of the well.

Downhole Equipment for Efficiency

Various downhole equipment, including pumps and safety valves, may be installed on the tubing string. Electric submersible pumps (ESP) or other downhole pumping enhance the lift of hydrocarbons to the surface, particularly in wells with low reservoir pressure.

Meanwhile, downhole safety valves are installed within the tubing to provide a failsafe mechanism for shutting off production in case of emergencies or well control issues.

Overall, downhole equipment enhances production efficiency and safety, allowing for controlled extraction of oil or gas from the reservoir.

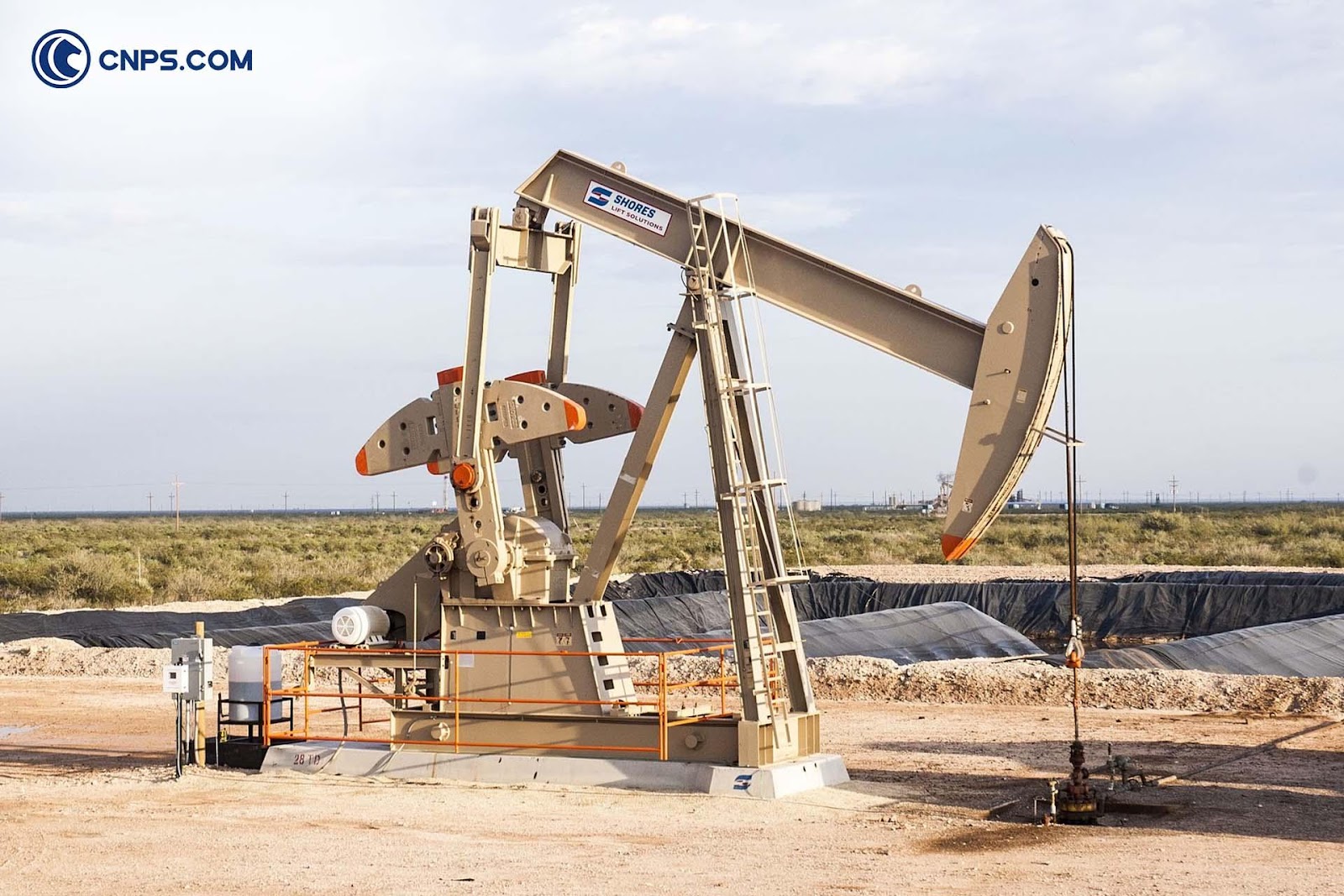

oilfield pump and other equipment

Wellhead & Surface Facilities Interface

At the surface, the wellhead acts as the interface between downhole components and surface facilities. These facilities, inclusive of separators, tanks, and other essential equipment, are pivotal for processing and transporting the extracted hydrocarbons.

Wellbore Monitoring

Tubing serves a dual purpose by facilitating wellbore monitoring. Downhole sensors and gauges installed within the tubing provide real-time data on pressure, temperature, and fluid properties. This information aids in reservoir management, optimizing production strategies, and ensuring wellbore integrity.

Drilling, Casing, & Tubing: Integration of The Trilogy

The three phases of drilling, casing, and tubing are intricately interconnected, requiring seamless integration for a successful wellbore lifecycle. If you’re looking for advanced solutions tailored according to geological complexities, reservoir characteristics, and evolving well conditions, schedule a consultation with our experts to explore CNPS’s cutting-edge oil and gas equipment.

Whether you’re looking for high-quality GRE screen tubes, FRP & RTP pipes, FRP pallets, mud logging sensors, and other solutions for EOR, mud logging, cementing, OCTG, production, drilling, or completion technologies, our advanced solutions, backed by pioneering technologies and a commitment to innovation, redefine the possibilities in oil and gas operations.

Request a quote now so we can help elevate your oil and gas operations with our expertise and innovation.
